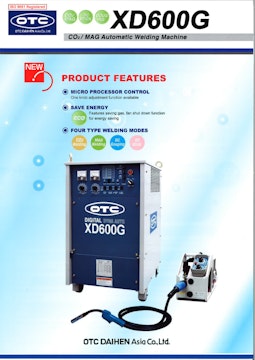

XD-600G
by OTC Daihen
Ideal welding machine for thick plate work such as steel structure, bridge and shipbuilding 3 in 1 Micro-processor digital controlled multi-function welding machine, make welding more easy.
- Micro Processor Control
- Save Energy
- Four Type Welding Mode
- Co2 Welding
- MAG Welding
- DC Gouging
- DC Stick
Specification
Specification
| Welding Power Source | CPXDG-800 | ||||||||||
| Rated Input Voltage | 220 V ± 10% | 380 V ± 10% | 415 V ± 10% | 440 V ± 10% | |||||||
| Rated Output Current | 600 A | ||||||||||
| Rated Load Voltage | 50 V | ||||||||||
| Output Current Range | 60 A - 600 A | ||||||||||
| Output Voltage Range | 15 V - 55 V | ||||||||||
| Max. no-load voltage | 84 V | ||||||||||
| Phase | 3 Phase | ||||||||||
| Frequency | 50/60 Hz | ||||||||||
| Rated Input | 47.7 kVA (36.6KW) | ||||||||||
| Rated Duty Cycle | 100% | ||||||||||
| Temperature Range | - 10℃ ~ + 40 ℃ | ||||||||||
| Dimensions (W x D x H) | 508 mm x 724 mm x 894 mm | ||||||||||
| Weight | 242 kg | 252 kg | 252 kg | 256 kg | |||||||
| Wire Feeder | CMXL-2301 | CMLW-231 | |||||||||
| Wire Size | 1.2, 1.4, (1.6) | (1.2), (1.4), 1.6, 2.0 | |||||||||
| Wire Type | Solid, Flux | ||||||||||
| Wire Feeder | Max. 18 m / min | ||||||||||
| Wire Reel | Shaft Dia. | 50 mm | |||||||||
| Outside Dia. | Max. 300 mm | ||||||||||
| Width | 103 mm | ||||||||||
| Wire Mass | Max. 25 kg | ||||||||||
| Mass | 10kg | 11kg | |||||||||
| Welding Cable | BKPT-7002 (2m) | ||||||||||
| Cable Diameter | 70mm² | ||||||||||
| Welding Torch | WT5000-SD | WTGUV-6001 | |||||||||
| Max Current | 500 A | 600 A | |||||||||
| Duty Cycle | 60% | 100% | |||||||||
| Wire Type | Solid, Flux | ||||||||||
| Wire Size ( mm ф ) | (1.2), 1.4, (1.6) | 1.6, 2.0 | |||||||||
| Mass (including cable) | 3.4 kg | 5.0 kg | |||||||||
