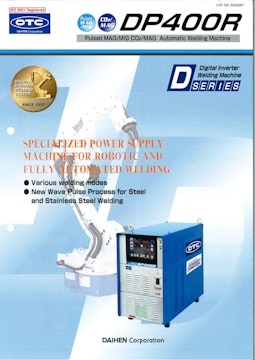

DP-400R

by OTC Daihen

Newly designed welding power supply for fully automated system and multiple materials.

Specialized Power Supply Machine for Robotic and Fully Automatic Welding

Specification

* Input Power Capacity and Cable Specifications

Item	Model Item	DP-400R

Power Source Voltage	V	400±15% (Inform input voltage when ordering

Number of Phase	－	3
Input Power Capacity	kVA	more than 21
Fuse Capacity	A	50
Breaker Capacity	A	50
Input Side Cable	mm²	more than 8
Base Metal / Feeder Power Cable	mm²	60
Earth Cable	mm²	more than 14

* Specification

Specification		DIGITAL INVERTER DP400R
Welding Power Source	Model	DP-400R
Rated Input Voltage	V	400±15% (Inform input voltage when ordering
Number of Phase		3
*1 Rated input power		20.1 (17.2)kVA, 18.4 (15.6)kW
Rated input current	A	29
*2 Rated duty cycle	%	80 (70)
Rated output current	A	400
Rated load voltage	V	34
Rated output current range	A	30~400
Rated output voltage range	V	12~38
Maximum no-load voltage	V	86
Dimensions ( WxDxH )	mm	350x730x530(without carrying handle)
Weight	kg	64
*2m input cable attached to Welding Power Source

*3 Digital panel	Model	E-2520
*4 Control cable	m	1

Wire feeder	Model	CMRE-741
*5 Applicable wire size	mm	(0.8), 0.9, 1.0, 1.2
Wire type		Solid wire, Flux-cored wire
Wire type speed	m/min	22
Dimensions ( WxDxH )	mm	195x275x248
Weight	kg	7
1 ( ) without pulse 2 ( ) as for used with attached dust filter 3 Required in the case of using without OTC-Robots 4 Extensions are not avaible *5 ( ) required options

* Accessories

DP-400R - Pulsed MAG/MIG CO2/MAG Automatic Welding Machine - D Series Digital Inverter Welding Machine
