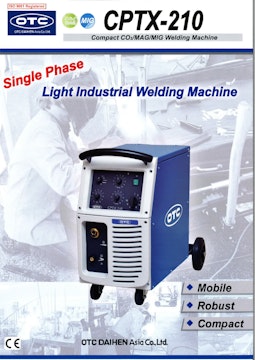

CPTX-210
by OTC Daihen
- Robust Design
- Simple Operation
- Designed for light manufacturing
- Automotive repair industries
Specification
Specification
|
CPTX 210 |
|||||||||
| Power Supply | 220 V / 50Hz | 240V / 50 Hz | |||||||
| Power Consumption Max | 7.4 kVA | 7.6 kVA | |||||||
| Fuse | 25 AT | ||||||||
| No-load Voltage | 18.5 - 44 V | ||||||||
| Welding Current | 30 - 210 A | ||||||||
| Welding Voltage | 15.5 - 24.5 V | ||||||||
| Duty Cycle | 20% | 210 A | |||||||
| 60% | 115 A | ||||||||
| 100% | 90 A | ||||||||
| Steps | 10 st. | ||||||||
| Wire feeding | 2 rolls | ||||||||
| Track/Spot welding time | 0.2 - 2.5 s | ||||||||
| Intermittent welding time | 0.2 - 2.5 s | ||||||||
| Welding wire diameter | 0.6 - 1.0 mm | ||||||||
| Protection class | IP21S | ||||||||
| Insulation class | H | ||||||||
| Cooling | Fan | ||||||||
| Weight | 57 kg | ||||||||
| Dimensions LxWxH (mm) | 820 x 440 x 640 | ||||||||
* Accessories
| Power Cable | 25 mm², 3 motor in length with clip | ||||||||
| Welding Torch | 200A, 3 meter in length (WT2000-SD) | ||||||||
