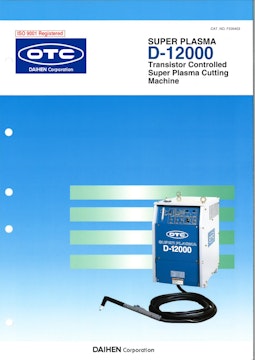

D-12000
by OTC Daihen
High Performance at Low Cost!!
- High Power and 100% Duty Cycle for Precision High Speed Cutting
- Max Cutting Capacity 60mm (2.4in)
Compared with gas cutting, the D-12000 can cut 16mm (0.64in) plate 4 times faster.
It will also cut 25mm (1in) plate to give a high quality precise finish.
Specification
Specification
| Model | Super Plasma D-12000 | ||||||
| Cutting power source | Model | TRC-121 | |||||
| Input voltage | V | Indicate input voltage when ordering | |||||
| Rated frequency | Hz | 50 / 60 | |||||
| Phase | － | 3-phase | |||||
| Rated input | kVA | 28.3 (27.5KW) | |||||
| Rated output current | A | 120 | |||||
| Rated output voltage | V | 200 | |||||
| Output current range | A | 30~120 | |||||
| Rated duty cycle | % | 100 | |||||
| Dimensions (W x D x H) | mm | 450x780x775 (18x31.2x31in) | |||||
| Mass | kg | 176 | |||||
| Cutting torch | Model | CTW(M) (L)-1201 | CTPW (M) (L)-1201 | ||||
| CTZW(M) (L)-1201 | |||||||
| Rated current | A | 120 | |||||
| Rated duty cycle | % | 100 | |||||
| Cooling System | － | Water-cooled | |||||
| Cable length | m | 10 *¹(20) *¹(30) | |||||
| Using gas | － | Compressed air | |||||
| Shape of cutting torch | － | Short handle type | Straight type | ||||
| Long handle type | |||||||
Standard Accessories
* For Cutting Power Sources
| Description | Qty | |||
| Air unit | 1 | |||
| Hose band | 1 | |||
| Pilot lamp | 1 | |||
| Base metal cable 1.5m (5ft) | 1 | |||
| Glass enclosed fuse 10A | 1 | |||
| Glass enclosed fuse 0.2A | 1 | |||
| Bolt for input cable M6 | 3 | |||
| Bolt for output terminal M8-20 | 1 | |||
| Grounding cable 2m (6.6ft) | 1 | |||
| Cartridge fuse C-3 | 2 | |||
* For Cutting Torch
| Description | Qty | |||
| Shield cup H839G02 | 1 | |||
| Tip H839G03 | 4 | |||
| Electrode H839M00 | 4 | |||
| Wrench H758H01 | 1 | |||
| *¹ Torch guide H775G00 | 1 | |||
