A-70 / C-70
by OTC Daihen

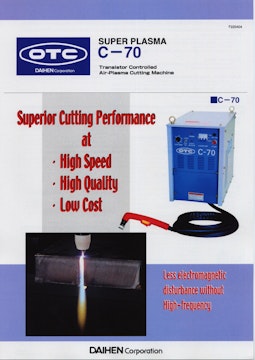

Super Plasma C-70 Transistor Controlled Air-Plasma Cutting Machine
- Less electromagnetic disturbance without High-frequency
- Cutting speed is improved approx. 15% compare with previous models.
- Maximum cutting capacity is up to 35mm.
- High 60% duty at 70 Amps.
- High quality cutting is realized by stable plasma arc supply
Specification
Specification
* Power Supply
| Model | Super Plasma C-70 | |||||||
| Cutting Power Source | Model / Unit | MRCT-70 | ||||||
| Rated Input Voltage | Indicate input voltage when ordering | |||||||
| Rated Frequency | Hz | 50/60 | ||||||
| Phase | － | 3-phase | ||||||
| Rated Input Power | kVA/KW | 20 / 10.5 | ||||||
| Rated Output Current | A | 70 | ||||||
| Rated Output Voltage | V | 108 | ||||||
| Rated Duty Cycle | % | 60 | ||||||
| Output Current Range | A | 25~70 | ||||||
| Dimensions (W x D x H) | mm | 360x560x550 | ||||||
| Net Weight | kg | 102 | ||||||
* Cutting Torch
| Cutting Torch | Model / Unit | CT-75 | ||||||
| Rated Current | A | 70 | ||||||
| Rated Duty Cycle | % | 60 | ||||||
| Cooling System | Air-cooled type | |||||||
| Cable Length | m | 6 | ||||||
| Using Gas | Compressed air | |||||||
| Type of Torch Body | Short | |||||||
* Standard Accessories
| Description | Specification | Qty | Remark | |||||
| Air Unit | C0076U | 1 | ||||||
| Hose Band | No.000 (9,5-12) | 1 | ||||||
| Base Metal Cable | 1.5 m | 1 | ||||||
| Grass Enclosed Fuse | 250V 3A | 1 | ||||||
| Cartridge Fuse | 380V 3A | 1 | ||||||
| Bolt | M8-20 | 1 | ||||||
* Standard Accessories
| Description | Specification | Qty | Remark | |||||
| Nozzle | PC0114 | 1 | ||||||
| Tip | PD0114-12 | 2 | 1.2 mm dia. | |||||
| Tip | PD0114-10 | 2 | 1.0 mm dia. | |||||
| Air Diffuser | PE0112 | 1 | ||||||
| Electrode | PR0117 | 5 | ||||||
| Wrench | CV0080 | 1 | ||||||
