DW-300
by OTC Daihen

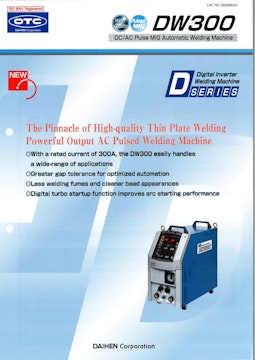

The Pinnacle of High-quality Thin Plate Welding Achieve highly efficient, high quality TIG-like bead appearances for MIG Applications.
- With a rated current of 300A, the DW300 easily handles a wide-range of applications
- Greater gap tolerance for optimized automation
- Less welding fumes and cleamer bead appearances
- Digital turbo startup function improves arc starting performance
Specification
Specification
* Input Power Capacity & Cable Specification
| Item | Model | DW-300 | ||||||
| Supply Voltage | V | 400±15% | ||||||
| Number Phases | － | 3-phases | ||||||
| Equipment Capacity | kVA | more than 18 | ||||||
| Switch Box Capacity |
Fuse | A | 30 | |||||
| Earth Leakage Breaker *1 No-fuse Breaker |
A | 30 | ||||||
| Input-side Cable | mm² | more than 5 | ||||||
| Base Metal-side Cable | mm² | 60 | ||||||
| *2 Grounding Cable (Class D Grounding) | mm² | more than 5 | ||||||
* Welding Power Source
| Welding Power Supply | Type | DW-300 (CE-Marking) | ||||||
| Rated Input Voltage | V | 400±15% (50/60 Hz) | ||||||
| Number of Phases | 3-phases | |||||||
| Rated Input | kVA | 18 (16kW) | ||||||
| Rated Duty Cycle | % | 80 | ||||||
| Rated Output Current | A | 300 | ||||||
| Rated Load Voltage | V | 29 | ||||||
| Range of Output Current | A | 30~300 | ||||||
| Range of Output Voltage | V | 12~36 | ||||||
| Max. no-load Voltage | V | 81 | ||||||
| Dimensions (W x D x H) | mm | 300 x 705 x 595 (without the carrying handle) | ||||||
| Weight | kg | 66 | ||||||
* Wire Feeder
| Wire Feeder | Type | CM-7401 (CE-Marking) | CMA-7401 (CE-Marking) | ||||||
| Applicable Wire Size | mm | (0.8), 0.9, 1.0, 1.2, (1.4), (1.6) | 1.0, 1.2, (1.6) | ||||||
| Wires Type | Solid wire, Flux-cored Wire | Hard Aluminum, Soft Aluminum | |||||||
| Wire Feeding Speed | m | Max 22 | |||||||
| Weight | kg | 16 | 16 | ||||||
| Dimensions (W x D x H) | mm | 243 x 732 x 402 | 243 x 732 x 402 | ||||||
* CO² / MAG Welding Torch
| CO²/MAG Welding Torch | Type | WT3510-SE | |||||||
| Rated current | A | 350 | |||||||
| Applicable wire size | mm | (0.9, 1.0), 1.2, (1.4) | |||||||
| Duty cycle | % | 60 | |||||||
| Cooling method | Air-Cooled | ||||||||
| Cable length | m | 3, (4.5), (6) | |||||||
* Aluminum MIG Welding Torch
| Aluminum MIG Welding Torch | Type | WTAW400-SE | |||||||
| Rated current | A | 400A | |||||||
| Applicable wire size | mm | 1.2, (1.6) | |||||||
| Duty cycle | % | 60 | |||||||
| Cooling method | Air-Cooled | ||||||||
| Cable length | m | 3 | |||||||
* Wire Feeder Control Cable
| Wire Feeder Control Cable | DW-300 (CE-Marking) Spec. | ||||||||
| Standard Cable | Choose cable from the following | ||||||||
| BKCPP-1002 (2m) | |||||||||
| BKCPP-1007 (5m) | |||||||||
| BKCPP-1012 (10m) | |||||||||
| Extention Cable | BKCPJ-1005 (5m), BKCPJ-1010 (10m) | ||||||||
| BKCPJ-1015 (15m), BKCPJ-1020 (20m) | |||||||||
* Gas Hose
| Gas Hose | DW-300 (CE-Marking) Spec. | ||||||||
| Standard | 3m Gas Hose is attached to wire feeder | ||||||||
| Extention | BKGG-0605 (5m), BKGG-0610 (10m) BKGG-0615 (15m), BKGG-0620 (20m) |
||||||||
* Wire Feeder Power Cable
| Wire Feeder Power Cable | DW-300 (CE-Marking) Spec. | ||||||||
| Standard Cable | Choose cable from the following | ||||||||
| BKPDJ-6002 (2m) | |||||||||
| BKPDJ-6007 (5m) | |||||||||
| BKPDJ-6012 (10m) | |||||||||
| BKPDJ-6017 (15m) | |||||||||
| BKPDJ-6022 (20m) | |||||||||
* Base Metal Power Cable
| Base Metal Power Cable | DW-300 (CE-Marking) Spec. | ||||||||
| Standard Cable | Choose cable from the following | ||||||||
| BKPDT-6002 (2m) | |||||||||
| BKPDT-6007 (5m) | |||||||||
| BKPDT-6012 (10m) | |||||||||
| BKPDT-6017 (15m) | |||||||||
| BKPDT-6022 (20m) | |||||||||
