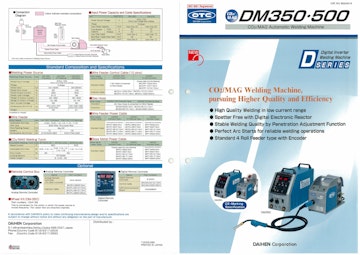

DM-350 / DM-500
by OTC Daihen
CO2/MAG Welding Machine, pursuing Higher Quality and Efficiency
- High Quality Welding in low current range
- Spatter Free with Digital Electronic Reactor
- Stable Welding Quality by Penetration Adjustment Function
- Perfect Arc Starts for reliable welding operations
- Standard 4 Roll Feeder type with Encoder
Specification
Specification
* Welding Power Source
| Welding Power Source | Type | DM-350 | DM-350 | DM-500 | ||||
| (Standard) | (CE-Marking) | (Standard) | ||||||
| Rated input voltage | V | 400±15% (Inform input voltage when ordering) |
||||||
| Phase | 3 Phase | |||||||
| Rated input | kVA | 18 (15kW) | 29(25kW) | |||||
| Rated input current | A | 350 | 500 | |||||
| Rated load voltage | V | 31.5 | 39 | |||||
| Range of Output current | A | 30~250 | 30~500 | |||||
| Range of Output voltage | V | 12~36 | 12~45 | |||||
| Max. no-load voltage | V | 58 | 80 | |||||
| Rated Duty Cycle | % | 60 | 100 | |||||
| Dimensions (W x D x H) | mm | 250 x 640 x 370 (except handle) |
300 x 655 x 595 | |||||
| (except handle, eyebolt) | ||||||||
| Weight | kg | 30 | 51 | |||||
* Wire Feeder
| Wire feeder | Type | CM-7401 (Standard) | CM-7401 (CE Marking) | |||||
| Applicable wire size | mm | (0.8),0.9,1.0,1.2,(1.4),(1.6) | ||||||
| Wire type | Solid wire flux-cored wire | |||||||
| Wire feeding seed | m/min | max 22 | ||||||
| Weight | kg | 13 | 16 | |||||
| Dimensions (W x D x H) | mm | 215 x 543 x 350 | 243 x 732 x 402 | |||||
* CO² MAG Welding Torch
| CO²/MAG Welding Torch | Type | WT3500-SD | WT3510-SD | WT5000-SD | ||||
| Rated current | A | 350 | 500 | |||||
| Applicable wire size | mm | (0.9), (1.0), 1.2 | (0.9), (1.0), 1.2 (1.4), (1.6) |
(1.2), 1.4, (1.6) | ||||
| Duty cycle | % | 30 | 60 | |||||
| Cooling method | Air cooled | |||||||
| Cable length | m | 3, (4.5), (6) | ||||||
* Wire Feeder Control Cable ( 10 pins )
| *Wire feeders Control cable |
DM350-500 Standard spec |
DM350 CE- Marking spec |
||||||
| Standard cable | 1.5m cable is attached to wire feeder |
Choose cable from the following BKCPP-1002 (2m) BKCPP-1007 (5m) BKCPP-1012 (10m) |
||||||
| Extension cable | BKCPJ-1005 (5m), BKCPJ-1010 (10m) BKCPJ-1015(15m), BKCPJ-1020 (20m) |
|||||||
* Gas Hose
| Gas hose | DM350-500 Standard spec |
DM350 CE- Marking spec |
||||||
| Standard | 3m Gas hose is attached to wire feeder | |||||||
| Extention | BKGG-0605(5m), BKGG-0610(10m) BKGG-0615(15m), BKGG-0620(20m) |
|||||||
* Wire Feeder Power Cable
| Wire feeder Power cable |
DM350 Standard spec |
DM350 CE- Marking spec |
DM500 Standard spec |
|||||||
| Standard cable | Choose cable from the following | Choose cable from the following | Choose cable from the following | |||||||
| BKPDT-3802(2m) | BKPDJ-3802(2m) | BKPT-6002(2m) | ||||||||
| BKPDT-3807(5m) | BKPDJ-3807(5m) | BKPT-6007(5m) | ||||||||
| BKPDT-3812(10m) | BKPDJ-3812(10m) | BKPT-6012(10m) | ||||||||
| BKPDT-3817(15m) | BKPDJ-3817(15m) | BKPT-6017(15m) | ||||||||
| BKPDT-3822(20m) | BKPDJ-3822(20m) | BKPT-6022(20m) | ||||||||
* Base Metal Power Cable
| Base metal power cable |
DM350 Standard spec |
DM350 CE- Marking spec |
DM500 Standard spec |
|||||||
| Standard cable | Choose cable from the following | Choose cable from the following | ||||||||
| BKPDT-3802(2m) | BKPT-6002(2m) | |||||||||
| BKPDT-3807(5m) | BKPT-6007(5m) | |||||||||
| BKPDT-3812(10m) | BKPT-6012(10m) | |||||||||
| BKPDT-3817(15m) | BKPT-6017(15m) | |||||||||
| BKPDT-3822(20m) | BKPT-6022(20m) | |||||||||
