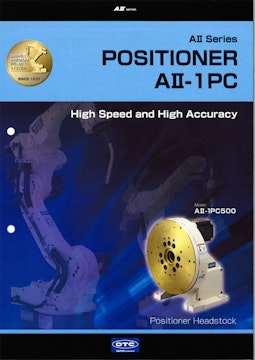

AII-1PC500 / AII-1PC1000
by OTC Daihen
AII-1PC Series
High-speed motion increases production efficiency!
- Faster Increasing productivity due to faster speed, 120 degrees per second (1PC500)
- Accurate Adopting Non-Backrush mechanism for high accuracy.
- Durable Simple drive system can reduce the risk of failure.
- Easy Installation Designed for compact, lightweight and easy installation.
Specification
Specification
| Name | Positioner Headstock | |||||||
| 1PC500 | 1PC1000 | |||||||
| Max. Allowable load | 500kg | 1000kg | ||||||
| Max. Eccentricity of Center of gravity |
100mm (loading capacity = 500kg) |
110mm (loading capacity = 1000kg) |
||||||
| Max. Height of Center of gravity |
300mm *3 (loading capacity = 500kg) |
600mm *3 (loading capacity = 1000kg) |
||||||
| Rotation speed | 20 min¯¹ 2.1 rad/sec |
12 min¯¹ 1.3 rad/sec |
||||||
| Rotation range | ±370° *1 | |||||||
| Allowable moment | 490 N·m | 1078N·m | ||||||
| Allowable moment of Inertia | 12.7kg·m² | 37.4kg·m² *2 | ||||||
| Drive System | AC servo motor 1.2 kW | |||||||
| Rotation axis repeatable | ±0.1mm (position at R300) | |||||||
| Position feedback | Absolute encoder | |||||||
| Mass (weight) | 110kg (with rotary joint : 114kg) |
193kg (with rotary joint : 197kg) |
||||||
| Allowable welding current | 500A : Rated duty cycle 60% | |||||||
| Installation type | Floor installation | |||||||
| Grounding method | Exclusive grounding equivalent to Class D or higher grounding | |||||||
| Color | White | |||||||
| Ambient temperature / humidity | 0~45℃, 20~80% (no condensation) | |||||||
