The intelligent all-in-one package
High-speed
Welding conditions setup screen
Welding results graph screen
AC timer
Inverter timer

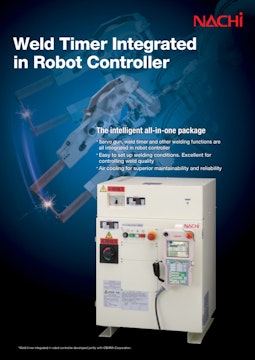

Weld Timer Integrated in Robot Controller
by Nachi
The intelligent all-in-one package
- Servo gun, weld timer and other welding functions are all integrated in robot controller.
- Easy to set up welding conditions. Excellent for controlling weld quality.
- Air cooling for superior maintainability and reliability.
High-speed
- Robot controller and timer controller are fully integrated.
- Increased speed 3.5% by thoroughly reducing wasted I/O processing time between weld timer and robot controller. (compared to regular timer)
- Greater productivity coupled with high-speed of SRA series.
Improved Operability & Full Traceability Function
- All weld timer functions can be set from the robot's teach pendent (welding parameters, stepper counter, welding history, and welding conditions)
- Welding history of up to 9,999 welds possible.
- History data can be exported.
- Track signs of abnormalities on graphic display of welding current.
Specification
Basic specifications
Select either AC or inverter control welding
| Item | Specifications | |
|---|---|---|
| Welding method | AC method, constant current control | DC inverter method, constant current control |
| Welding power supply | 1-phase AC 200/220/380/400/420/440V (50Hz/60Hz) |
3-phase AC 380/400/420/440V (50Hz/60Hz) |
| Current control method | Constant current control method AC synchronized control |
Constant current control method PWM inverter control Inverter frequency 400 to 2,000 Hz |
| Current set value | 2,000 to 60,000A | 2,000 to 40,000A |
| Cooling method | Natural air cooling | Forced air cooling |
| Power device | Thyristor | IGBT |
| Welding gun | Servo gun (Optional air gun supported) |
Servo gun |
| Welding conditions | 255 conditions (or 16 conditions × 16 groups) | |
| Gun series | 31 Series | |
| Step up | Step up, linear up | |
| Weld history | Maximum 9,999 welds | |
| Ambient temperature | 0 to 45°C | |
| Humidity | 20 to 85% (without condensation) | |
| Dust/drip proof | IP54 equivalent | |
| Size of timer controller |
580mm(W)×525mm(D)×180mm(H) | 580mm(W)×525mm(D)×350mm(H) |
( * ) The specifications are subject to changes without notice.
( * ) In case that an end user uses this product for military purpose or production of weapon, this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Act. Please go through careful investigation and necessary formalities for export.
