ATRM-008-00* Auto Tip Recycle Machine

by Kyokutoh

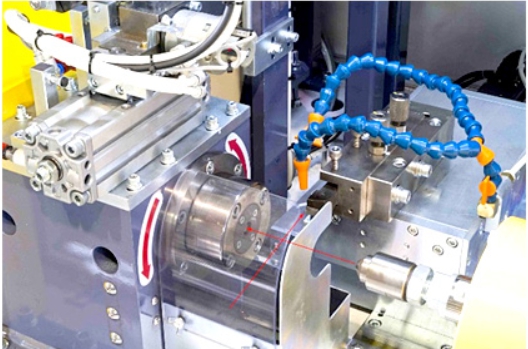

Completely automatic cap tip polishing machine

  1. Adapted the servo motor. Programing of dress condition can be set in advance.
  2. Touch panel for the control board allows easy management of dressing amount, sorting length, dressing speed, etc.
  3. Improvement in safety and maintainability with open-and-close shutter.
  4. Measures the length, then dresses in a programmed shape.
  5. Replacing the shank can be done without removing the spindle.
  6. Automatic sorting into 3 levels of length, Cap tips shorter than the set length can be set as NG(Option).
  7. Can accommodate up to 1200 pcs cap tips(Option : Normal storage capacity 400 pcs).

Specification

Type name ATRM-008-00*
Power Three Phase AC 200V
Required Air Pressure 0.5Mpa
Weight 1500kg
Measurements 1600 1710H 950D
Tip Storage Capacity 400 tips
Recommended Dressing Time 15 sec
Compatible Tip Measurement 1 type  from ф13 & ф16
Compatible Tip Shape Female Taper excluding  eccentric tips

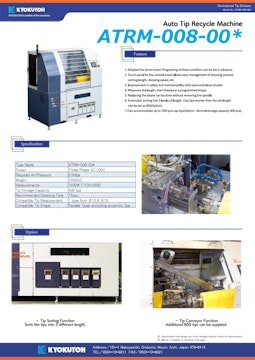

Catalogs
